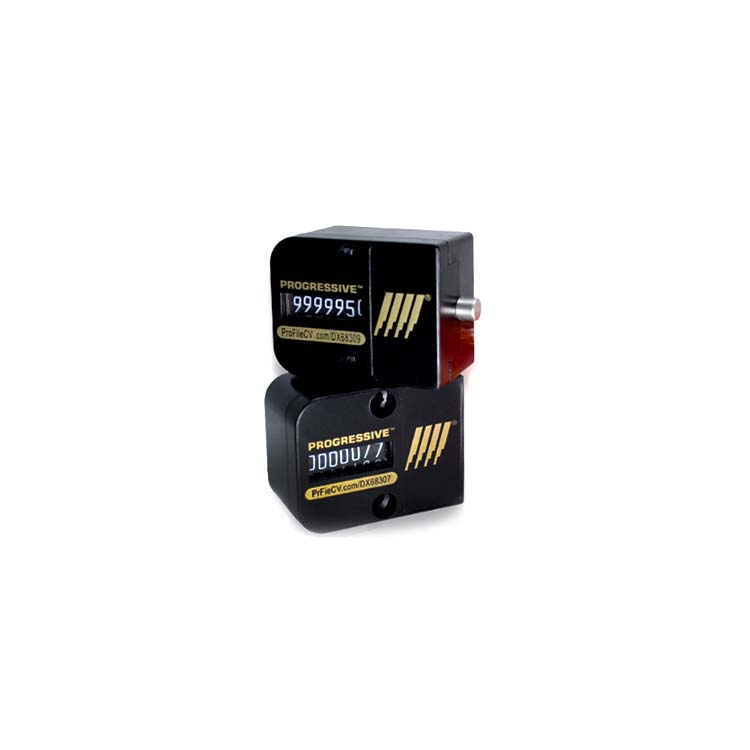

Shot Counters For Plastic Molds

Cycle Counter
The counter for plastic molds is used to accumulate and record the times of mold trial and production. The 7-digit direct-reading display has high accuracy. The mold can be maintained in fixed numbers based on this data. The maximum operating temperature is 160°C. Mechanical type that cannot be reset.
The counter can visually monitor the activities of the mold, obtain monitoring data from it, and provide a reference for mold repair and maintenance procedures.
Mold counter, including housing, counting pin, counting plate, return spring, and small parts of internal one-way transmission. When working, the counting pin drives the internal one-way transmission small parts under the action of the clamping force, and then drives the counting plate to rotate through the internal one-way transmission small parts. After the counter plate jumps forward by a number, the counter pin returns to its original position under the action of the return spring. Accurately accumulate and count repeatedly in this way. The structure principle is simple and easy to understand, and the product is small in size and easy to install on the mold.

Volume Discount is available
